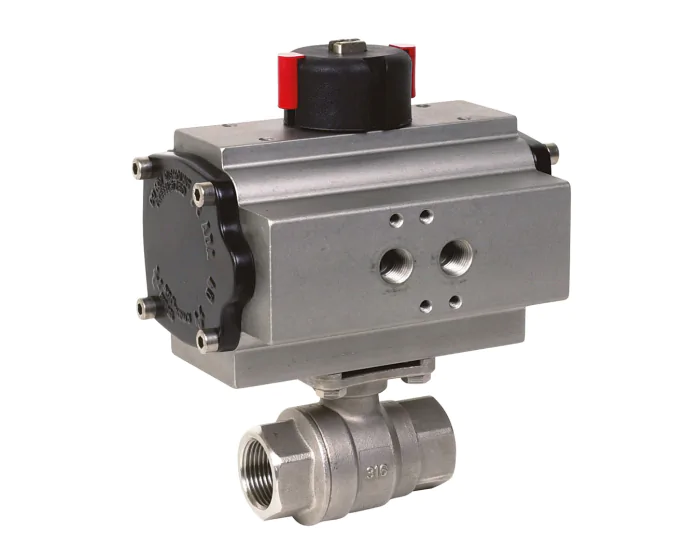

The 715XS series stainless steel ball valve has a CF8M body and ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN80.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE-Glass |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Spring return |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' | 272402015100 | S1000976 |
€153.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' | 272402016100 | S1000977 |
€173.40
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' | 272403015100 | S1000978 |
€160.91
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' | 272403016100 | S1000979 |
€176.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' | 272404015100 | S1000980 |
€168.83
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' | 272404016101 | S1000981 |
€202.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 | 272405015100 | S1000982 |
€185.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 | 272405016102 | S1000983 |
€256.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 | 272406015101 | S1000984 |
€242.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 | 272406016103 | S1000985 |
€324.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' | 272407015102 | S1000986 |
€340.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' | 272407016104 | S1000987 |
€428.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 | 272408015102 | S1000988 |
€469.20
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 | 272408016104 | S1000989 |
€561.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' | 272409015103 | S1000990 |
€642.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' | 272409016105 | S1000991 |
€785.40
(excl. btw)
|
add to cart |
